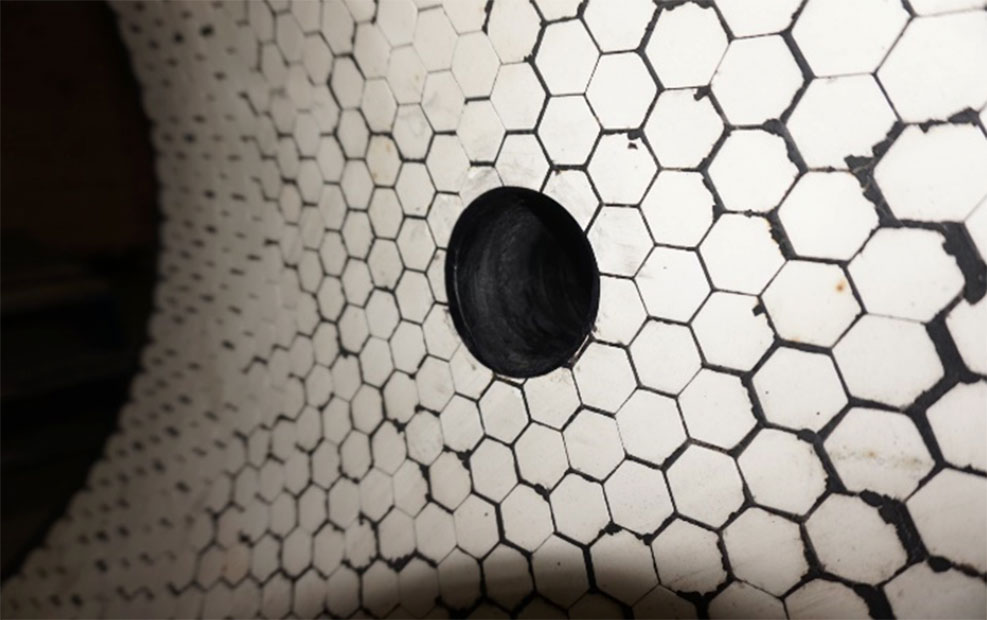

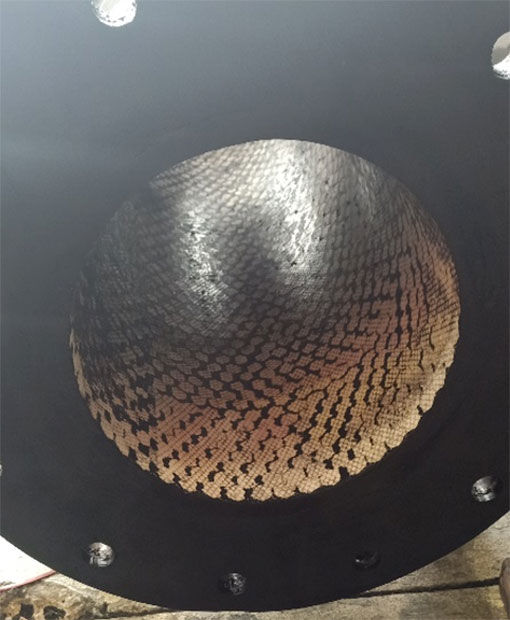

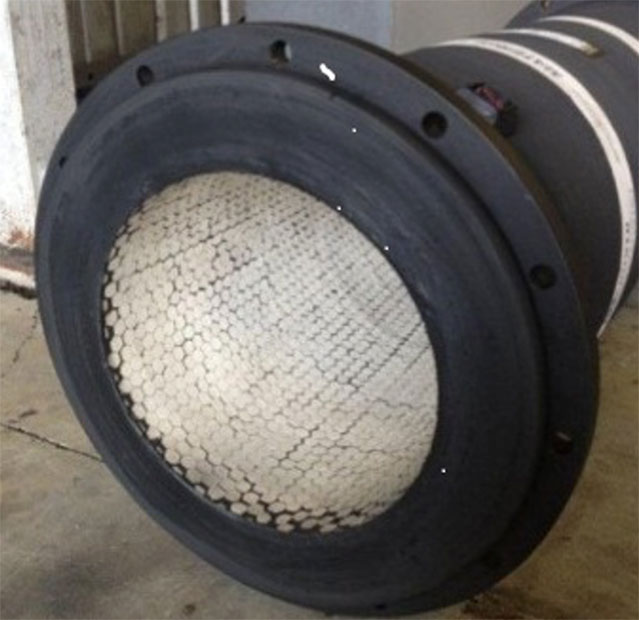

Straight Ceramic FLEXI-WEAR™ Hoses
Straight Ceramic Slurry FLEXI-WEAR™ Hoses
Our Ceramic Slurry Hoses are designed with the main aim of extended abrasion resistance and maximum wear life.
We were the first to manufacture ceramic hoses in the Australian market in 2008 and our ceramic hoses are reliable and ultra-durable due to the innovative use of superior ceramic wear materials and reinforcing materials.
Our flexible ceramic hoses can be designed for most applications based on your needs. Where extended wear life is required that cannot be achieved with conventional rubber hoses, ceramic hoses are the absolute best solution. Varius different ceramic tile composites and thicknesses can be used to achieve the required wear life.
From suction or delivery solutions to diameter to length to pressure rating to specialized internal ceramic liners and flange connections, we have years of experience to work with you to find your best solution.
Ceramic lined rubber hoses are designed to give you flexibility with a ceramic wear liner to suit your needs from high abrasion wear resistance to chemical resistance compounds.
| NB sizes: | 40mm – 1200mm |
| Lengths: | Up to 12 metres long |
| Pressure ratings: | Vacuum application and up to 7000kPa operating pressures |
| Liner materials: | 92% Alumina ceramic, 95% alumina ceramic, 99% alumina ceramic and alumina-reinforced zirconia composite. |
| Flange Connections: | Plain ends (for clamping or muff couplings), Flanged (fixed or swivel), Flanged full spigot (fixed or swivel), Double flanged, Victaulic Grooved (roll or cut) and any Custom design and standard or specialized flange drillings needed |
| Bespoke options: | Flanged stubs (such as flushing lines), branches, stubs |
| Wearmin Wear Indicator option: | Yes |
